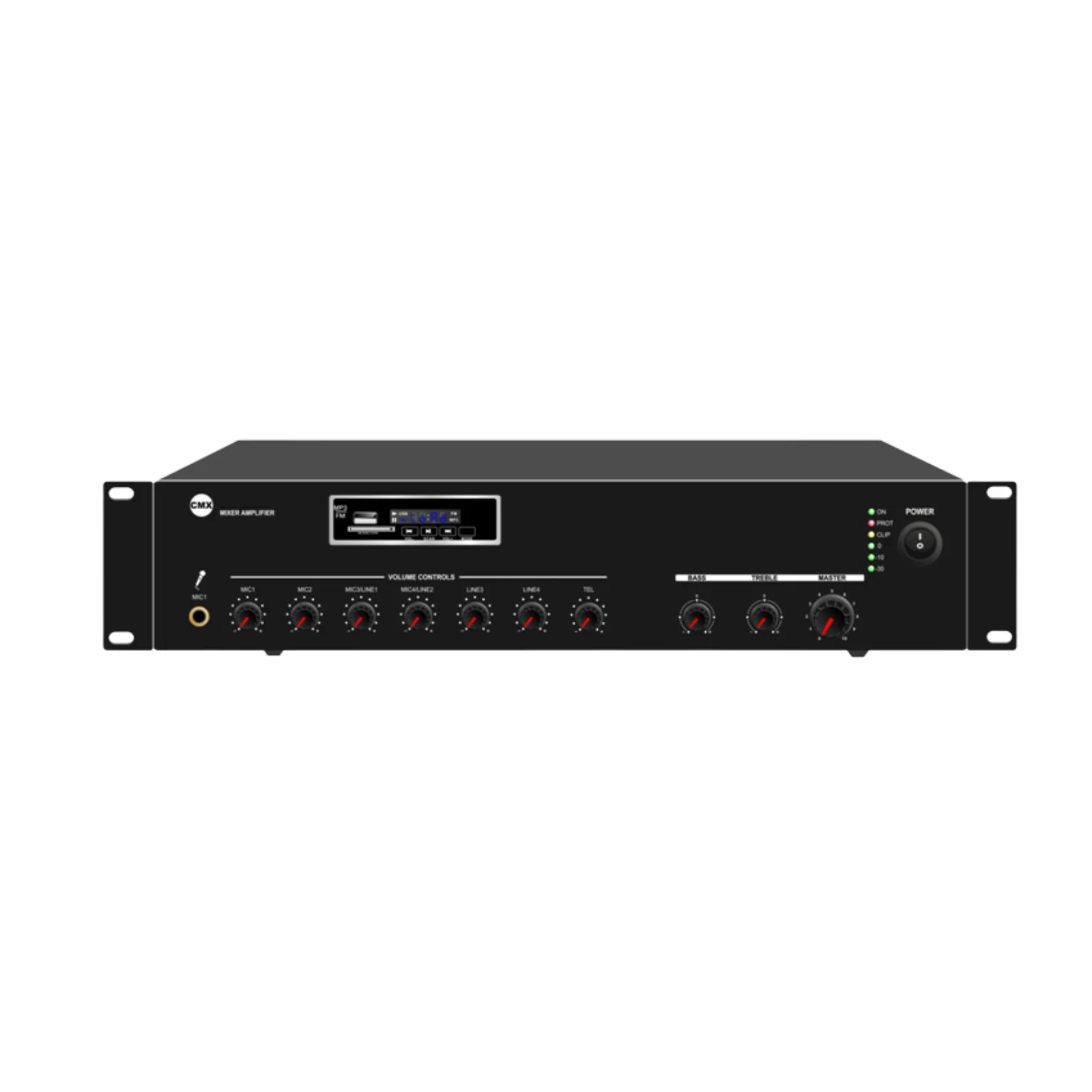

CMX EA‑240Z 5‑Zone Mixer Amplifier
CMX EA‑240Z 5‑Zone Mixer Amplifier – 240W RMS
The CMX EA‑240Z is a versatile 5‑zone mixer amplifier designed for commercial audio installations requiring multiple zone control, integrated media playback, and robust audio performance. With built-in USB/SD, Bluetooth, and FM radio support, it’s ideal for retail, hospitality, education, and public venues.
This 240W RMS amplifier features five independent 100 V zone outputs and an additional zone that supports 100 V, 70 V, or low-impedance speaker connections (4–16 Ω). The front panel provides intuitive access to media playback, zone control, and microphone input mixing.
Key Features:
- 5 × 100 V zone outputs + 1 × mixed zone (100 V / 70 V / 4–16 Ω)
- USB/SD MP3 player, FM radio, Bluetooth audio with IR remote
- 5 Microphone inputs (XLR); Mic1 with VOX priority and mute
- 2 Auxiliary inputs: RCA (Aux1) and ¼″ jack (Aux2)
- Preamp Out and Amp In for chaining additional gear
- +48 V phantom power (Mic1 & Mic2)
- 3‑band EQ per input channel (Low / Mid / High)
- External chime/siren trigger input for alerts
- Short circuit, clip, overload, and over-temperature protection
- Status LEDs for signal, playback, and Bluetooth activity
Specifications:
| Feature | Specification |
|---|---|
| Rated Output Power | 240 W RMS |
| Zone Outputs | 5 × 100 V zones + 1 mixed output (4–16 Ω / 70 V / 100 V) |
| Microphone Inputs | Mic1–5 (XLR), Mic1 with VOX and mute |
| Auxiliary Inputs | Aux1 (RCA), Aux2 (¼″ jack) |
| Media Playback | USB / SD MP3, FM radio, Bluetooth (IR remote included) |
| EQ | Low / Mid / High per channel, Master tone control |
| Chime & Siren | External trigger input |
| Phantom Power | +48 V for Mic1 and Mic2 |
| Frequency Response | ~60 Hz – 15 kHz (±3 dB) |
| Signal-to-Noise Ratio | Line ≥ 85 dB, Mic ≥ 72 dB |
| THD | < 0.5% |
| Power Supply | AC 230 V / 50–60 Hz (dual-voltage for global markets) |
| Dimensions | 484 × 350 × 88 mm |
| Weight | 8.6 kg |
Why Choose the CMX EA‑240Z?
- Ideal for multi-room audio control with independent zone outputs
- All-in-one source: MP3, FM, Bluetooth — no external player required
- Built-in protection ensures reliable long-term use
- Flexible input/output for integration with PA systems or conference audio
Streamlined Audio Control for Commercial Spaces
The CMX EA‑240Z makes it simple to manage audio across five distinct zones while offering media playback and remote control functionality. Its compact rack-mountable design, robust construction, and integrated safety protections make it an essential amplifier for installations that demand reliability and control.
CMX EA‑240Z 5‑Zone Mixer Amplifier – 240W RMS
The CMX EA‑240Z is a versatile 5‑zone mixer amplifier designed for commercial audio installations requiring multiple zone control, integrated media playback, and robust audio performance. With built-in USB/SD, Bluetooth, and FM radio support, it’s ideal for retail, hospitality, education, and public venues.
This 240W RMS amplifier features five independent 100 V zone outputs and an additional zone that supports 100 V, 70 V, or low-impedance speaker connections (4–16 Ω). The front panel provides intuitive access to media playback, zone control, and microphone input mixing.
Key Features:
- 5 × 100 V zone outputs + 1 × mixed zone (100 V / 70 V / 4–16 Ω)
- USB/SD MP3 player, FM radio, Bluetooth audio with IR remote
- 5 Microphone inputs (XLR); Mic1 with VOX priority and mute
- 2 Auxiliary inputs: RCA (Aux1) and ¼″ jack (Aux2)
- Preamp Out and Amp In for chaining additional gear
- +48 V phantom power (Mic1 & Mic2)
- 3‑band EQ per input channel (Low / Mid / High)
- External chime/siren trigger input for alerts
- Short circuit, clip, overload, and over-temperature protection
- Status LEDs for signal, playback, and Bluetooth activity
Specifications:
| Feature | Specification |
|---|---|
| Rated Output Power | 240 W RMS |
| Zone Outputs | 5 × 100 V zones + 1 mixed output (4–16 Ω / 70 V / 100 V) |
| Microphone Inputs | Mic1–5 (XLR), Mic1 with VOX and mute |
| Auxiliary Inputs | Aux1 (RCA), Aux2 (¼″ jack) |
| Media Playback | USB / SD MP3, FM radio, Bluetooth (IR remote included) |
| EQ | Low / Mid / High per channel, Master tone control |
| Chime & Siren | External trigger input |
| Phantom Power | +48 V for Mic1 and Mic2 |
| Frequency Response | ~60 Hz – 15 kHz (±3 dB) |
| Signal-to-Noise Ratio | Line ≥ 85 dB, Mic ≥ 72 dB |
| THD | < 0.5% |
| Power Supply | AC 230 V / 50–60 Hz (dual-voltage for global markets) |
| Dimensions | 484 × 350 × 88 mm |
| Weight | 8.6 kg |
Why Choose the CMX EA‑240Z?
- Ideal for multi-room audio control with independent zone outputs
- All-in-one source: MP3, FM, Bluetooth — no external player required
- Built-in protection ensures reliable long-term use
- Flexible input/output for integration with PA systems or conference audio
Streamlined Audio Control for Commercial Spaces
The CMX EA‑240Z makes it simple to manage audio across five distinct zones while offering media playback and remote control functionality. Its compact rack-mountable design, robust construction, and integrated safety protections make it an essential amplifier for installations that demand reliability and control.
Original: $391.01
-65%$391.01
$136.85Description
CMX EA‑240Z 5‑Zone Mixer Amplifier – 240W RMS
The CMX EA‑240Z is a versatile 5‑zone mixer amplifier designed for commercial audio installations requiring multiple zone control, integrated media playback, and robust audio performance. With built-in USB/SD, Bluetooth, and FM radio support, it’s ideal for retail, hospitality, education, and public venues.
This 240W RMS amplifier features five independent 100 V zone outputs and an additional zone that supports 100 V, 70 V, or low-impedance speaker connections (4–16 Ω). The front panel provides intuitive access to media playback, zone control, and microphone input mixing.
Key Features:
- 5 × 100 V zone outputs + 1 × mixed zone (100 V / 70 V / 4–16 Ω)
- USB/SD MP3 player, FM radio, Bluetooth audio with IR remote
- 5 Microphone inputs (XLR); Mic1 with VOX priority and mute
- 2 Auxiliary inputs: RCA (Aux1) and ¼″ jack (Aux2)
- Preamp Out and Amp In for chaining additional gear
- +48 V phantom power (Mic1 & Mic2)
- 3‑band EQ per input channel (Low / Mid / High)
- External chime/siren trigger input for alerts
- Short circuit, clip, overload, and over-temperature protection
- Status LEDs for signal, playback, and Bluetooth activity
Specifications:
| Feature | Specification |
|---|---|
| Rated Output Power | 240 W RMS |
| Zone Outputs | 5 × 100 V zones + 1 mixed output (4–16 Ω / 70 V / 100 V) |
| Microphone Inputs | Mic1–5 (XLR), Mic1 with VOX and mute |
| Auxiliary Inputs | Aux1 (RCA), Aux2 (¼″ jack) |
| Media Playback | USB / SD MP3, FM radio, Bluetooth (IR remote included) |
| EQ | Low / Mid / High per channel, Master tone control |
| Chime & Siren | External trigger input |
| Phantom Power | +48 V for Mic1 and Mic2 |
| Frequency Response | ~60 Hz – 15 kHz (±3 dB) |
| Signal-to-Noise Ratio | Line ≥ 85 dB, Mic ≥ 72 dB |
| THD | < 0.5% |
| Power Supply | AC 230 V / 50–60 Hz (dual-voltage for global markets) |
| Dimensions | 484 × 350 × 88 mm |
| Weight | 8.6 kg |
Why Choose the CMX EA‑240Z?
- Ideal for multi-room audio control with independent zone outputs
- All-in-one source: MP3, FM, Bluetooth — no external player required
- Built-in protection ensures reliable long-term use
- Flexible input/output for integration with PA systems or conference audio
Streamlined Audio Control for Commercial Spaces
The CMX EA‑240Z makes it simple to manage audio across five distinct zones while offering media playback and remote control functionality. Its compact rack-mountable design, robust construction, and integrated safety protections make it an essential amplifier for installations that demand reliability and control.
