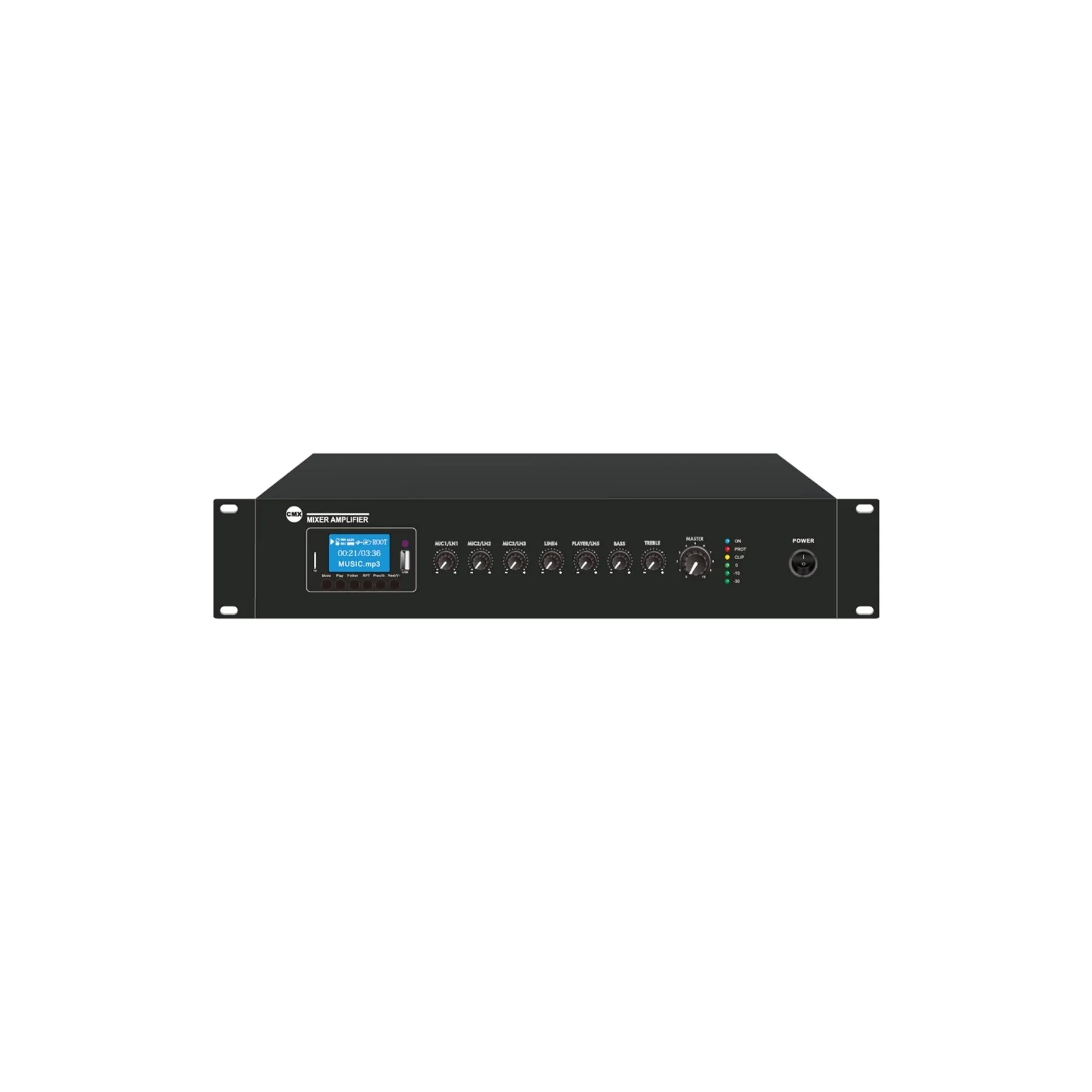

CMX EA‑120A 120 W Rack-Mount Mixer Amplifier
CMX EA‑120A 120 W Rack-Mount Mixer Amplifier
The CMX EA‑120A is a 120 W RMS rack-mount mixer amplifier designed for commercial audio, paging, and background music applications. Housed in a compact 1U form factor, it integrates modern media playback capabilities with reliable amplification, making it ideal for retail, hospitality, offices, and public venues.
This professional unit supports USB, SD, FM radio, and Bluetooth audio input with an included IR remote. It features multiple mic and auxiliary inputs, phantom power, VOX priority override, and transformer or low-impedance speaker output compatibility.
Key Features:
- 120 W RMS power output in a 1U rack-mount form
- Media playback: USB/SD MP3, FM tuner, and Bluetooth streaming
- Mic1 input with XLR, +48 V phantom power, and VOX priority
- Mic2 & Mic3 via switchable 6.3 mm jacks
- 2 × RCA auxiliary inputs and RCA line output for external amplification
- Supports 100 V / 70 V lines and 4–16 Ω low-impedance speaker output
- Bass, treble, and master volume controls
- Built-in protection: short circuit, clip, overload, thermal
Specifications:
| Feature | Specification |
|---|---|
| Output Power | 120 W RMS |
| Mic Inputs | 3 × Mic/Line (Mic1: XLR with phantom & VOX, Mic2–3: 6.3 mm) |
| Aux Inputs | 2 × RCA |
| Media Playback | USB/SD MP3, FM radio, Bluetooth |
| Output Type | 100 V / 70 V or 4–16 Ω speaker load |
| Line Output | RCA (for external amplifier) |
| Frequency Response | 60 Hz – 15 kHz (±3 dB) |
| SNR | Line ≥ 85 dB; Mic ≥ 72 dB |
| THD | < 0.5% |
| Protection | Short circuit, clip, overload, over-temperature |
| Power Supply | AC 230 V, 50–60 Hz |
| Dimensions | 484 × 335/405 × 88 mm |
| Weight | 6.1 – 6.6 kg |
Why Choose the CMX EA‑120A?
- Versatile input configuration for microphones, line devices, and wireless media
- Reliable transformer and low-impedance speaker compatibility
- Priority VOX override for paging or emergency broadcasts
- Clean audio output with low THD and high signal-to-noise performance
- Expandable via RCA line output to additional amplifiers
Compact Power for Professional Audio
The CMX EA‑120A blends compact form with flexible functionality, offering a powerful solution for voice, music, and alert delivery across diverse commercial environments. From boardrooms to boutiques, it ensures clear communication and seamless audio integration.
