Electro-Voice EVOLVE 50M Portable Column PA System
Electro-Voice EVOLVE 50M Portable Column PA System

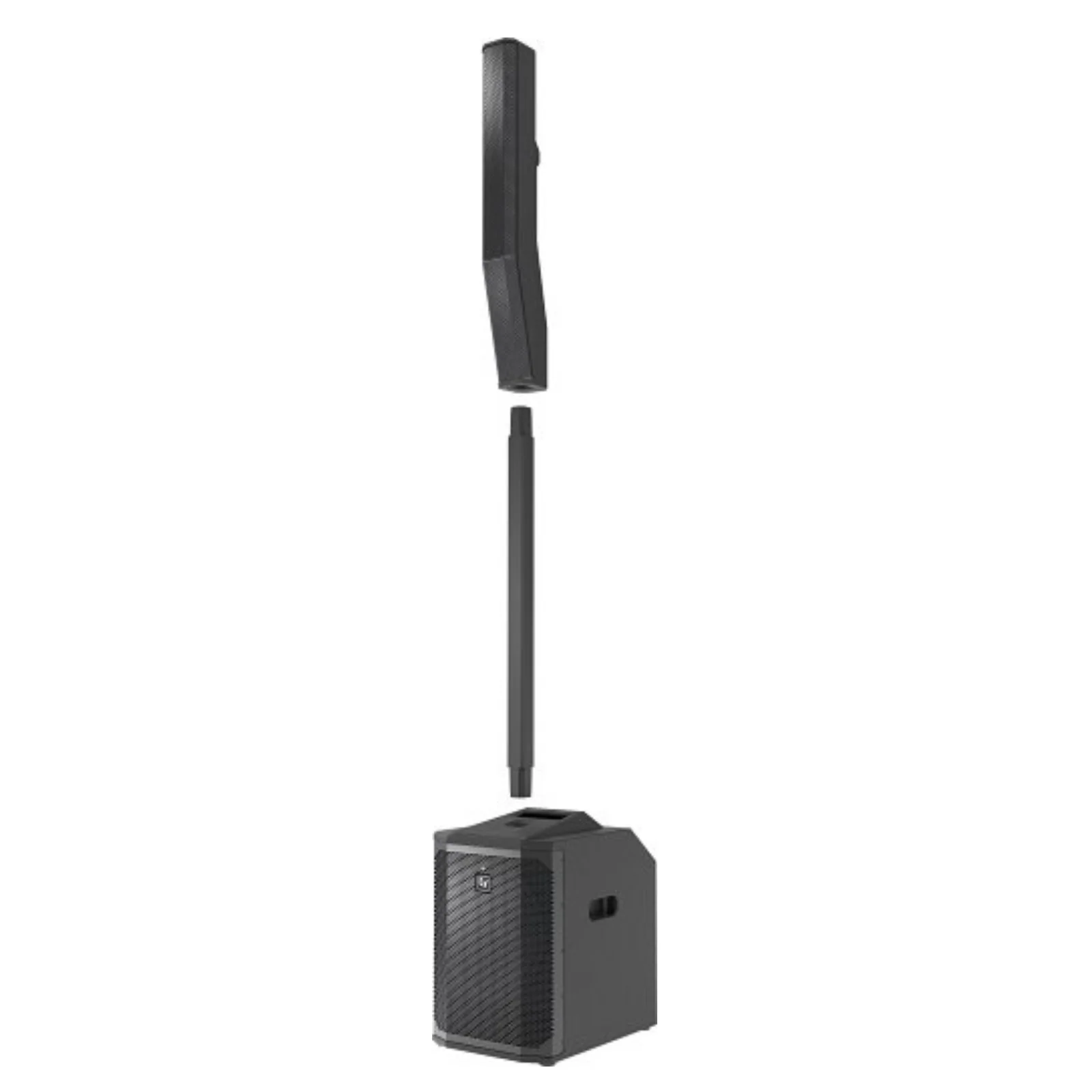

The Electro-Voice EVOLVE 50M is a high-performance portable column PA system that merges sophisticated design with professional-grade sound. Featuring a sleek column and subwoofer configuration, the EVOLVE 50M delivers powerful, full-range audio through eight 3.5″ neodymium drivers and a 12″ subwoofer, all powered by a robust 1000 W amplifier. Designed for mobile musicians, DJs, bands, and rental applications, this system offers wide coverage, low distortion, and simple transportability.
The built-in eight-channel digital mixer includes versatile inputs for mic, line, instrument, Bluetooth® audio, and more. DSP with Electro-Voice’s QuickSmart technology offers intuitive control via on-board display or mobile app. With its lightweight yet durable enclosure, the EVOLVE 50M sets the standard for premium audio quality and ease of use in compact live sound reinforcement systems.
Key Features
- Column array system: 8 × 3.5″ neodymium drivers provide articulate mid and high frequencies.
- Powerful subwoofer: 12″ LF driver delivers deep, punchy bass with clarity.
- Integrated digital mixer: 8-channel DSP with remote app control and multiple inputs.
- Wide coverage pattern: 120° horizontal × 40° vertical dispersion ensures consistent sound distribution.
- Flexible connectivity: Includes XLR, TRS, RCA, 3.5 mm, Hi-Z, Bluetooth®, and footswitch inputs.
- Modular and portable: Lightweight components for easy transport and setup.
Specifications
| Feature | Detail |
|---|---|
| Model | EVOLVE 50M |
| Column Drivers | 8 × 3.5″ neodymium drivers |
| Subwoofer | 1 × 12″ driver |
| Frequency Response (-3 dB) | 43 Hz – 20 kHz |
| Frequency Range (-10 dB) | 37 Hz – 20 kHz |
| Maximum SPL | 127 dB |
| Coverage (H × V) | 120° × 40° |
| Amplifier Rating | 1000 W total (500 W LF + 500 W HF) |
| Inputs | 4 × XLR/TRS combo mic/line 2 × XLR/TRS combo stereo line 1 × ¼″ Hi-Z instrument 1 × RCA stereo line 1 × 3.5 mm stereo 1 × Bluetooth® stereo audio 1 × ¼″ footswitch |
| Outputs | 1 × XLR mix-out 1 × XLR aux-out 1 × RJ45 QuickSmart Link |
| Enclosure Materials | Column – composite; Sub – 15 mm plywood; Pole – aluminum; Steel grille (black or white powder-coat) |
| Assembled Dimensions (H × W × D) | 2045 × 345 × 471 mm |
| Net Weight | Total: 26.25 kg (Column: ≈ 4.7 kg; Pole: ≈ 1.25 kg; Sub: ≈ 20.3 kg) |
| Power Supply | 100–240 V AC, 50–60 Hz, 1.5–0.6 A |
Why Choose the EVOLVE 50M?
- Compact but powerful: Delivers full-range, high-output audio in a portable design.
- Professional connectivity: Handles multiple sources for live performance, playback, and streaming.
- QuickSmart control: Easily adjust DSP settings on the unit or via app.
- All-in-one solution: Built-in mixer and Bluetooth® make it perfect for solo acts and mobile setups.
High-Impact Sound. Compact Design. Professional Flexibility.
Engineered for real-world performance, the Electro-Voice EVOLVE 50M delivers exceptional sound clarity and flexibility in a format designed for rapid setup and professional results. Whether you’re a live performer, rental house, or mobile DJ, it provides the power, control, and portability needed to elevate your sound.
