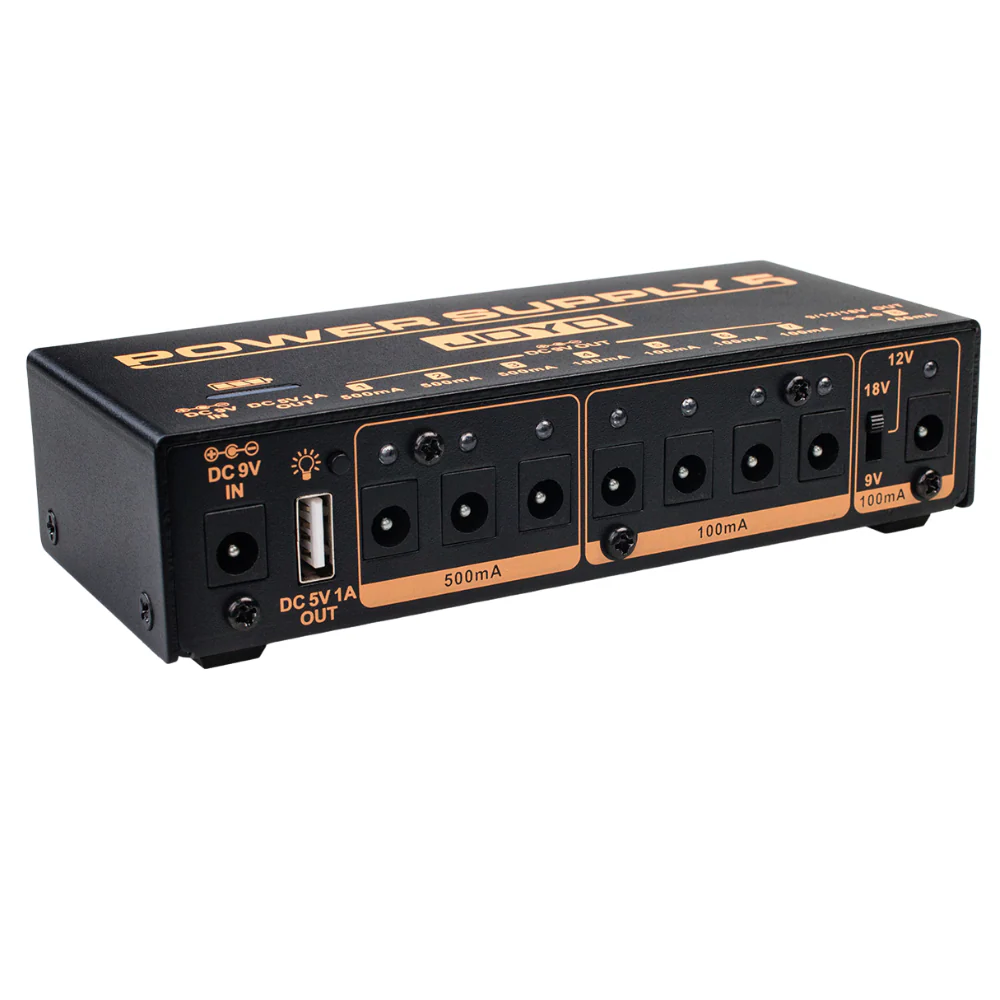

JOYO JP-05 Rechargeable Guitar Pedal Power Supply
JOYO JP-05 Rechargeable Guitar Pedal Power Supply
The JOYO JP-05 is a versatile and portable power supply designed to meet the diverse needs of guitarists. Equipped with a built-in rechargeable lithium battery, it ensures uninterrupted performance during gigs and practice sessions. Its compact design and multiple output options make it an ideal choice for powering a variety of guitar effects pedals.
Key Features:
- Rechargeable Battery: Built-in 7.4V/4400mAh lithium battery provides over 10 hours of operation with analog pedals.
- Multiple DC Outputs: Eight isolated outputs accommodate various voltage and current requirements.
- Adjustable Voltage Output: One output switchable between 9V, 12V, and 18V to support different pedal specifications.
- USB Charging Port: Includes a 5V USB output for charging smartphones, tablets, and other portable devices.
- Battery Level Indicator: LED indicators display remaining battery life and charging status.
- Protective Features: Independent filters and protection against overload and short-circuits ensure safe operation.
Specifications:
| Battery Type | 7.4V/4400mAh Rechargeable Lithium |
| Charging Time | Approximately 2.5 hours |
| DC Outputs | 4x 9V @ 100mA 3x 9V @ 500mA 1x 9V/12V/18V @ 100mA (switchable) |
| USB Output | 5V/1A |
| Dimensions | 146mm (L) × 65mm (W) × 35mm (H) |
| Weight | 620g |
JOYO JP-05 Rechargeable Guitar Pedal Power Supply
The JOYO JP-05 is a versatile and portable power supply designed to meet the diverse needs of guitarists. Equipped with a built-in rechargeable lithium battery, it ensures uninterrupted performance during gigs and practice sessions. Its compact design and multiple output options make it an ideal choice for powering a variety of guitar effects pedals.
Key Features:
- Rechargeable Battery: Built-in 7.4V/4400mAh lithium battery provides over 10 hours of operation with analog pedals.
- Multiple DC Outputs: Eight isolated outputs accommodate various voltage and current requirements.
- Adjustable Voltage Output: One output switchable between 9V, 12V, and 18V to support different pedal specifications.
- USB Charging Port: Includes a 5V USB output for charging smartphones, tablets, and other portable devices.
- Battery Level Indicator: LED indicators display remaining battery life and charging status.
- Protective Features: Independent filters and protection against overload and short-circuits ensure safe operation.
Specifications:
| Battery Type | 7.4V/4400mAh Rechargeable Lithium |
| Charging Time | Approximately 2.5 hours |
| DC Outputs | 4x 9V @ 100mA 3x 9V @ 500mA 1x 9V/12V/18V @ 100mA (switchable) |
| USB Output | 5V/1A |
| Dimensions | 146mm (L) × 65mm (W) × 35mm (H) |
| Weight | 620g |
Description
JOYO JP-05 Rechargeable Guitar Pedal Power Supply
The JOYO JP-05 is a versatile and portable power supply designed to meet the diverse needs of guitarists. Equipped with a built-in rechargeable lithium battery, it ensures uninterrupted performance during gigs and practice sessions. Its compact design and multiple output options make it an ideal choice for powering a variety of guitar effects pedals.
Key Features:
- Rechargeable Battery: Built-in 7.4V/4400mAh lithium battery provides over 10 hours of operation with analog pedals.
- Multiple DC Outputs: Eight isolated outputs accommodate various voltage and current requirements.
- Adjustable Voltage Output: One output switchable between 9V, 12V, and 18V to support different pedal specifications.
- USB Charging Port: Includes a 5V USB output for charging smartphones, tablets, and other portable devices.
- Battery Level Indicator: LED indicators display remaining battery life and charging status.
- Protective Features: Independent filters and protection against overload and short-circuits ensure safe operation.
Specifications:
| Battery Type | 7.4V/4400mAh Rechargeable Lithium |
| Charging Time | Approximately 2.5 hours |
| DC Outputs | 4x 9V @ 100mA 3x 9V @ 500mA 1x 9V/12V/18V @ 100mA (switchable) |
| USB Output | 5V/1A |
| Dimensions | 146mm (L) × 65mm (W) × 35mm (H) |
| Weight | 620g |
