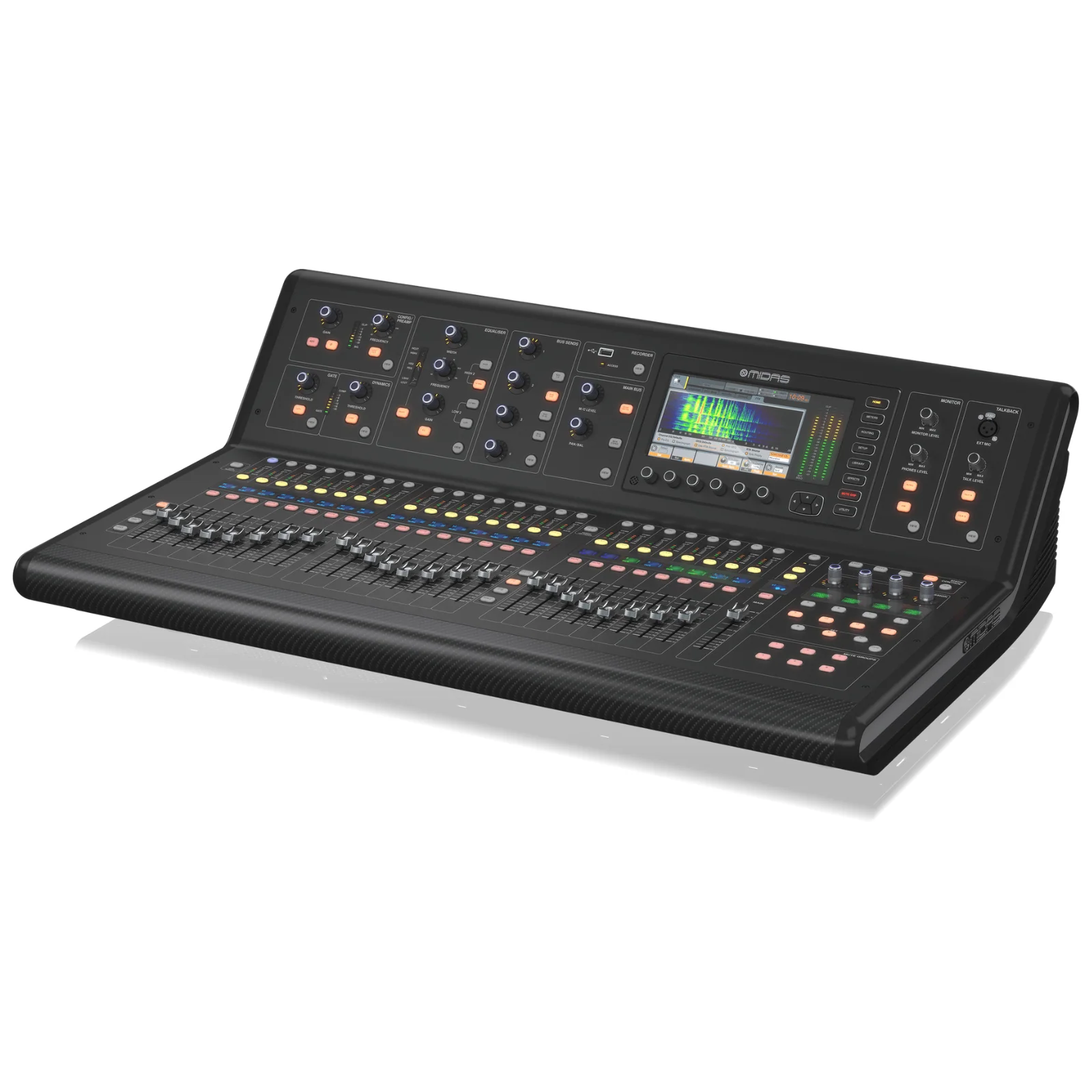

Midas M32 LIVE Digital Mixer – 40‑Channel

The Midas M32 LIVE is a professional digital mixing console tailored for high-demand live sound reinforcement and studio recording. With 40 input channels and 32 award-winning Midas PRO mic preamps, it delivers pristine audio performance in a durable yet lightweight chassis made from carbon fiber and aluminum. Designed for touring engineers and production environments, the M32 LIVE offers intuitive layout, motorized fader control, multitrack recording, and full remote operability.

Whether used on the road or in a studio, the M32 LIVE offers uncompromised signal quality, robust routing capabilities, and seamless integration into modern digital workflows.

Key Features

• Inputs: 32 XLR mic preamps (with phantom power) + 8 additional line channels—supports mic, instrument, and line-level sources.
• Buses & Faders: 25 time-aligned mix buses, 8 DCA groups, 6 mute groups, and 25 motorized 100 mm faders for fast, accurate control.
• Digital Processing: 40-bit floating-point DSP core with 114 dB A/D and 120 dB D/A dynamic range.
• Integrated Effects: Eight stereo FX engines, 100-band RTA, and onboard graphic EQs, reverbs, and delays.
• Recording: Dual SD/SDHC card slots for up to 32-track WAV recording/playback; 32×32 USB audio interface for DAW use.
• Networking: Dual AES50 ports, Ultranet support, and MIDI I/O for flexible connectivity.
• Display & Control: 7″ full-color TFT screen and remote compatibility via M32-EDIT (PC/Mac) and M32-MIX (iPad) apps.

Specifications

Feature	Specification
Input Channels	40 total (32 mic + 8 line)
Mic Preamps	Midas PRO preamps with +48 V phantom power
Mix Buses	25 (time-aligned/phase-coherent)
Faders	25 motorized 100 mm faders
DSP Engine	40-bit floating-point
Dynamic Range	114 dB A/D, 120 dB D/A
Effects	8 stereo FX engines, 100-band RTA
Recording	Dual SD/SDHC slots, 32-track WAV
USB Audio Interface	32 in / 32 out (USB 2.0)
Networking	2× AES50, Ultranet, MIDI I/O
Display	7″ TFT color (800×480)
Remote Control	M32‑EDIT (PC/Mac), M32‑MIX (iPad)
Dimensions	891 × 607 × 256 mm
Weight	Approx. 25 kg (55 lb)

Why Choose the Midas M32 LIVE?

• Top-tier mic preamps ensure pristine capture and mix-ready audio.
• Complete live or studio integration with multitrack recording and USB audio interface.
• High channel count and robust DSP meet the demands of professional shows and broadcasts.
• Full remote control compatibility for mobile mixing and off-stage operation.

Built for Precision, Trusted Worldwide

The Midas M32 LIVE is trusted by engineers worldwide for its exceptional sound quality, advanced routing capabilities, and road-ready build. Whether in concert venues or studio control rooms, it stands as a versatile command center for modern digital mixing.
