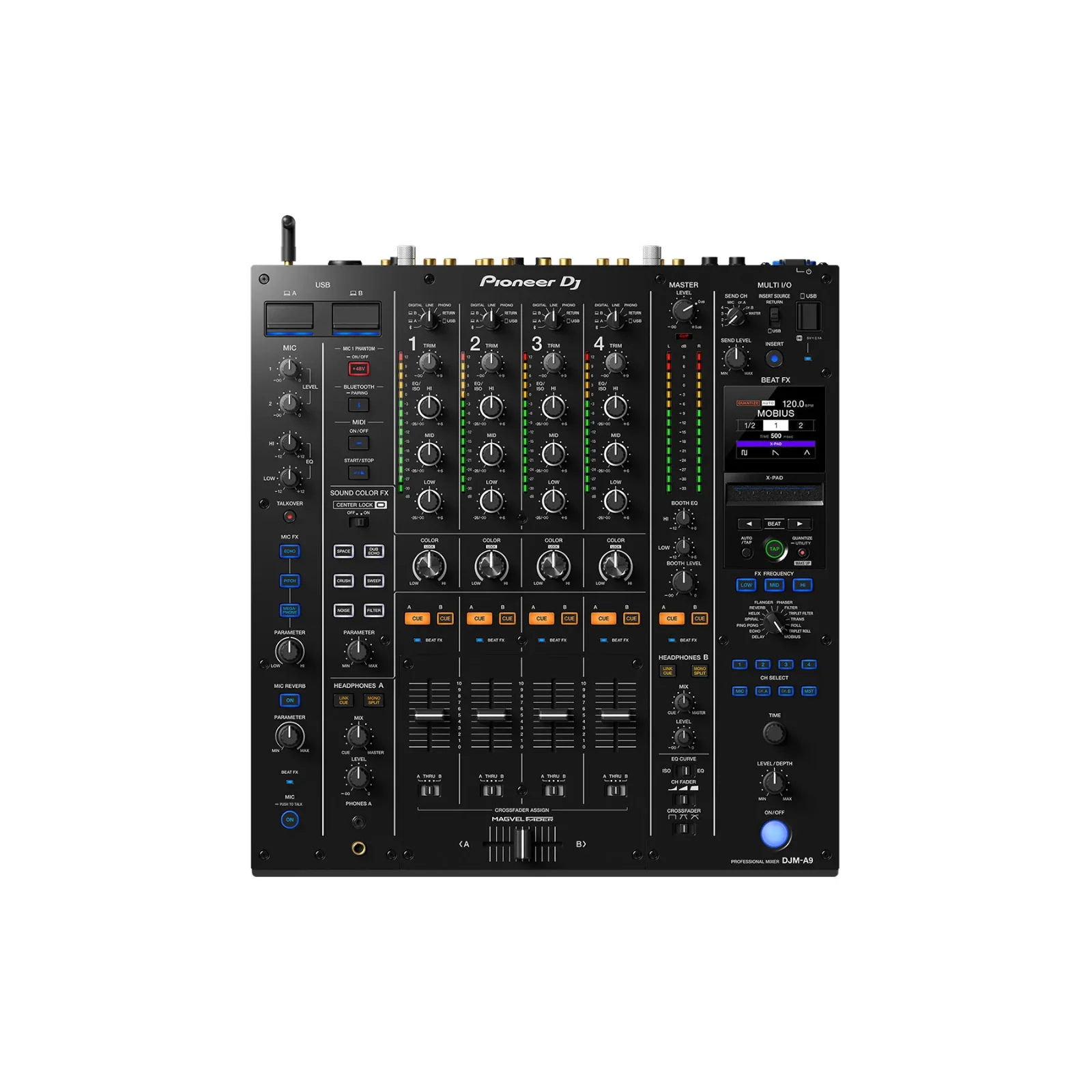

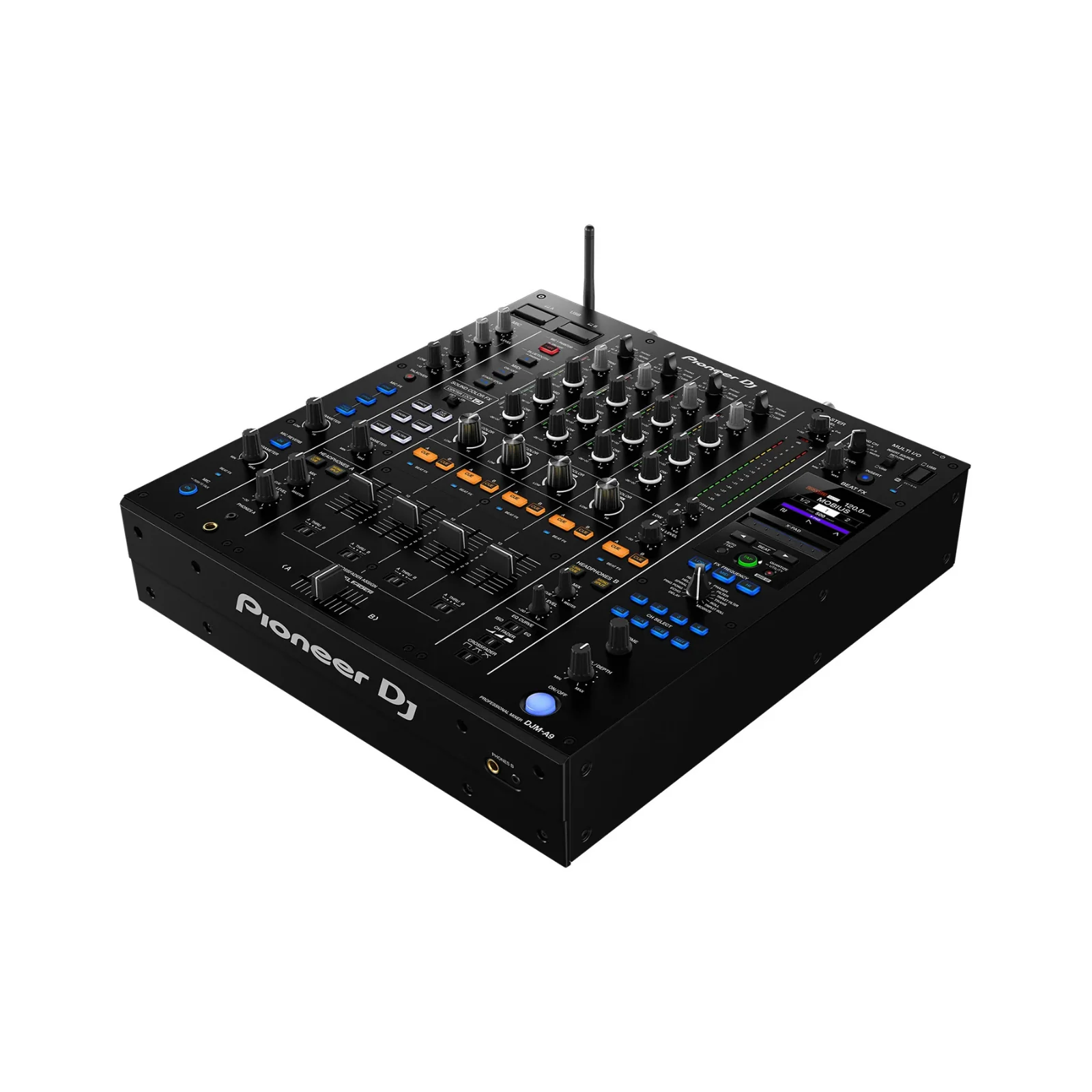

Pioneer DJM-A9 4-Channel Professional DJ Mixer
Pioneer DJM-A9 4-Channel Professional DJ Mixer
The Pioneer DJM-A9 represents the next generation of professional DJ mixers, delivering refined sound quality, expanded connectivity, and creative flexibility. Building on the legacy of the DJM-900NXS2, the DJM-A9 includes a redesigned audio circuit with 32-bit ESS Technology converters, dual USB-C ports, and Bluetooth 5.0 input, making it ideal for club installations, festival stages, and advanced DJ setups.
Designed with precision and performance in mind, it features Sound Color FX with the new Center Lock control, an upgraded MAGVEL FADER, dual headphone outputs, and a reimagined mic section that supports condenser mics. The DJM-A9 delivers seamless integration with rekordbox and Serato DJ Pro, including DVS compatibility (license required), making it the ultimate mixing solution for professionals.
Key Features
- 32-bit ESS A/D and D/A Converters: Ultra-high fidelity sound across all channels and outputs.
- Improved Layout: Wider spacing between EQ knobs, brighter LEDs, and intuitive visual layout for live environments.
- Sound Color FX with Center Lock: New locking system prevents over-rotation for precise FX control.
- 14 Beat FX: Enhanced effects including Triplet Filter, Triplet Roll, Mobius, and classic FX options.
- Dual Headphone Monitoring: Independent outputs with separate cue buttons and volume/mix controls for back-to-back DJing.
- Advanced Mic Section: Includes phantom-powered input and new FX (Echo, Pitch, Megaphone, Reverb).
- Expanded Connectivity: Includes USB-B, USB-C, Bluetooth input, LAN, and full analog/digital I/O.
- Wireless Connectivity: Built-in Bluetooth 5.0 and dual-band Wi-Fi support (2.4/5 GHz).
Specifications
| Feature | Details |
|---|---|
| Sampling Rate | 96 kHz |
| A/D & D/A Converters | 32-bit ESS Technology |
| Signal-to-Noise Ratio (Line) | 105 dB |
| Signal-to-Noise Ratio (Phono) | 88 dB |
| Bluetooth | Version 5.0 |
| Wireless LAN | IEEE 802.11 a/b/g/n/ac (2.4 GHz / 5 GHz) |
| Dimensions | 407.4 × 458.3 × 107.9 mm |
| Weight | 10.2 kg (22.49 lbs) |
Connectivity
| Type | Details |
|---|---|
| Inputs | 4 × Line (RCA), 4 × Phono (RCA), 4 × Digital (Coaxial), 2 × Mic (XLR/TRS Combo, TRS) |
| Outputs | 2 × Master (XLR, RCA), 1 × Booth (1/4" TRS), 1 × REC (RCA), 1 × Digital Master (Coaxial), 4 × Headphones (2 × 1/4", 2 × 3.5 mm) |
| USB | 1 × Type-A, 2 × Type-B/Type-C |
| Other | Send & Return (1/4" TS), 1 × LAN Port (100BASE-TX) |
Included Accessories
- Power Cord
- Quick Start Guide
- Warranty Documentation
- Precautions for Use
Ideal For
- Professional DJs: Precision controls, dual monitoring, and industry-standard effects engine.
- Clubs and Festivals: Robust build, advanced FX, and multiple user ports for seamless transitions.
- Creative Performers: Built-in Bluetooth input, external FX send/return, and mic FX for hybrid setups.
Redefine Your Mix
With the Pioneer DJM-A9, DJs gain a mixer that excels in sound quality, flexibility, and tactile control. Whether you’re performing at a top-tier venue or setting up a high-end home studio, the DJM-A9 delivers the tools needed for professional-grade sound design and dynamic performance flow.
