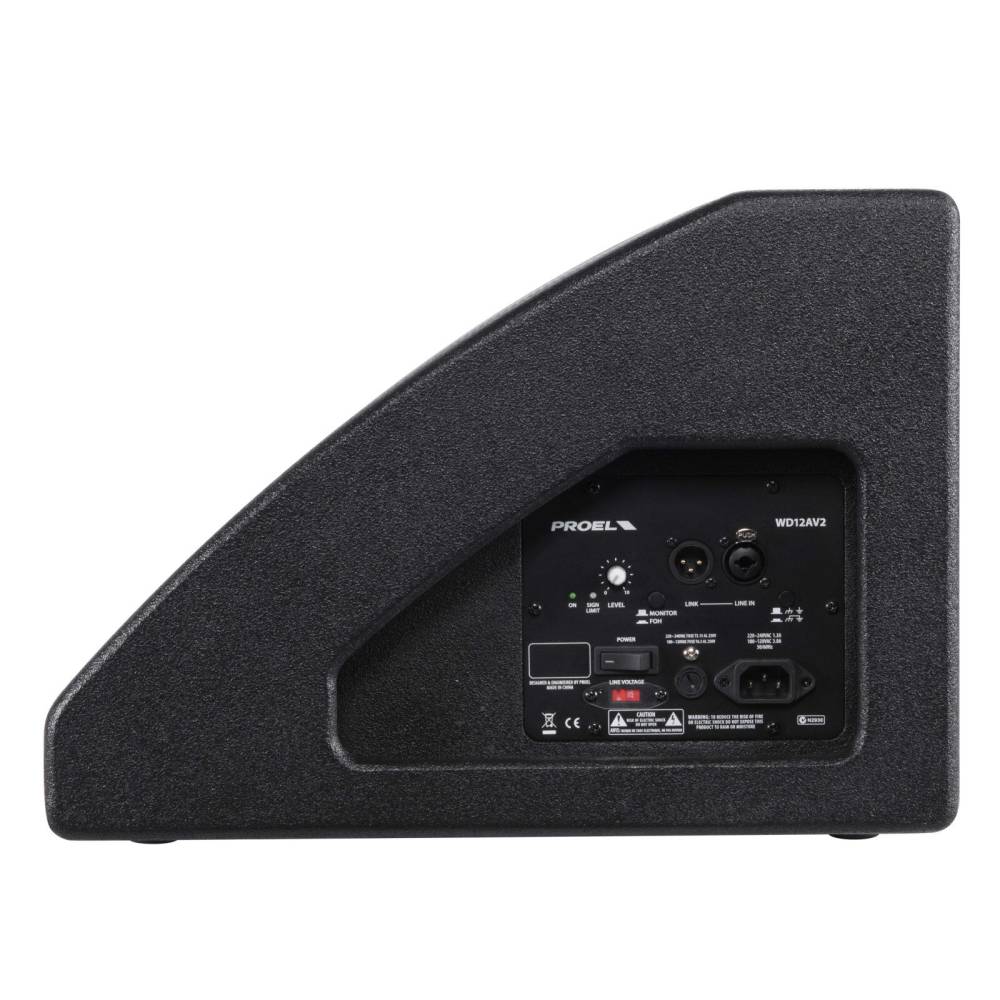

Proel WD12AV2 Active 2-Way Coaxial Stage Monitor

The Proel WD12AV2 is a high-performance active 2-way coaxial stage monitor engineered for professional applications, including live performances and stage monitoring. It features a robust 12-inch woofer paired with a 1-inch compression driver, delivering a wide frequency response of 50 Hz to 20 kHz. With a bi-amplified system providing 350 W continuous power (700 W peak), the WD12AV2 is capable of producing a maximum SPL of 124 dB, ensuring powerful and clear audio output. Its compact, low-profile design and lightweight plywood construction make it highly portable and ideal for stage environments. ([soundsystems.proel.com](https://soundsystems.proel.com/en/prodotto/wd12av2-active-2-way-coaxial-stage-monitor/))

Key Features

• Active 2-way coaxial stage monitor for professional use
• 12" woofer with 2.5" voice coil
• 1" compression driver with 1.35" voice coil
• 350 W continuous power (700 W peak) with Class D amplification
• Frequency response: 50 Hz – 20 kHz
• Maximum SPL: 124 dB
• Dual EQ presets for monitor or FOH (Front of House) use
• Rugged plywood construction with anti-scratch polyurethane finish
• Compact design with two recessed handles for easy portability
• Reinforced grille with dust protection
• Pole socket for flexible mounting options

Specifications

System Type	2-way coaxial vented stage monitor
Low Frequency Device	12" woofer with 2.5" voice coil
High Frequency Device	1" compression driver with 1.35" voice coil
Frequency Response	50 Hz – 20 kHz
Maximum SPL	124 dB
Amplifier Power	350 W continuous (HF: 50 W Class AB, LF: 300 W Class D)
Input Impedance	30 kΩ balanced; 15 kΩ unbalanced
Input Sensitivity	0 dBu
Controls	Level, EQ Preset Selector, Ground Lift
Construction	Plywood with black polyurethane coating
Power Supply	230 VAC or 120 VAC – 50/60 Hz
Weight	14.5 kg
Dimensions (W x H x D)	350 x 540 x 380 mm
