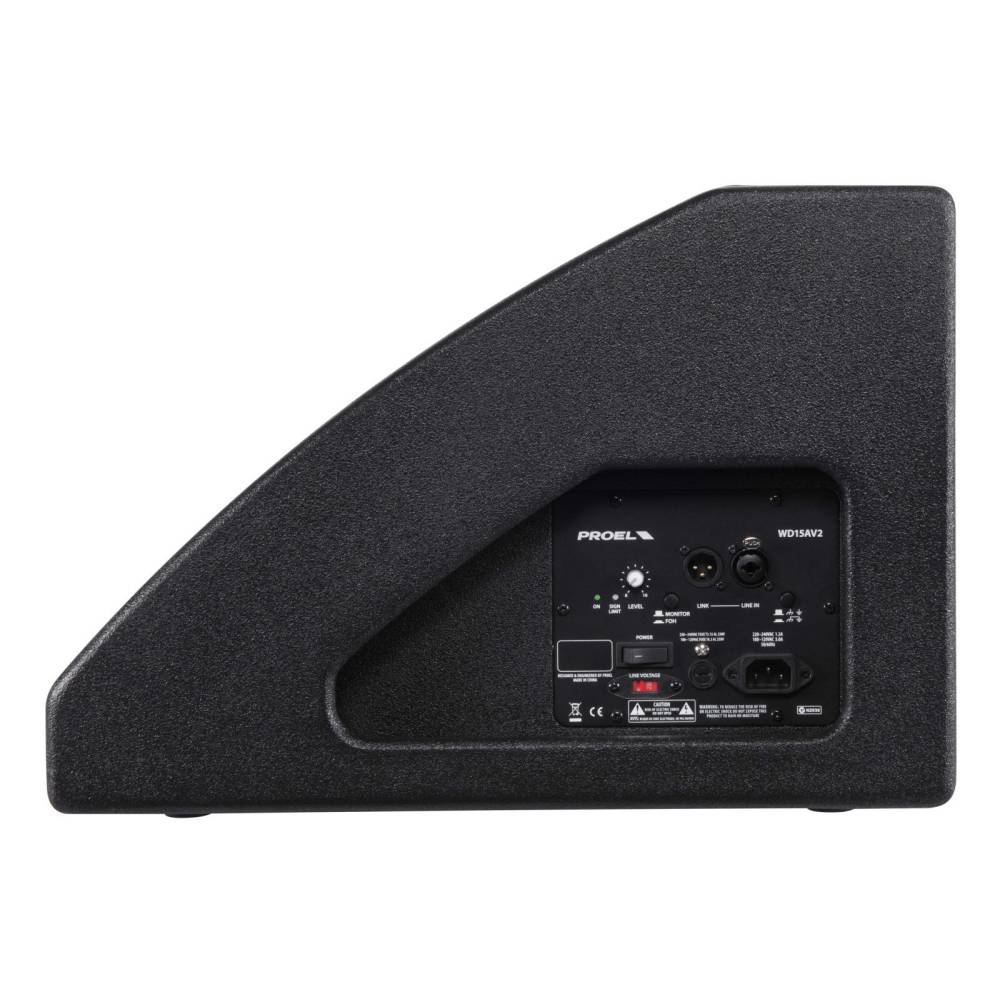

Proel WD15AV2 Active 2-Way Coaxial Stage Monitor

The Proel WD15AV2 is a high-performance active 2-way coaxial stage monitor designed to deliver exceptional sound clarity and power for live performances. Equipped with a 15-inch woofer and a 1-inch horn-loaded compression driver, it offers a frequency response ranging from 45 Hz to 20 kHz, ensuring full-range audio reproduction. The bi-amplified system provides a total continuous power of 450 W (400 W for low frequencies and 50 W for high frequencies), capable of reaching a maximum SPL of 126 dB. Its low-profile, lightweight plywood cabinet with black ultra-durable polyurethane paint ensures durability and ease of transport. :contentReference[oaicite:0]{index=0}

Key Features

• Active 2-way coaxial stage monitor
• 15" woofer with 3" voice coil
• 1" horn-loaded compression driver with 1.35" voice coil
• Bi-amplified system with 450 W continuous power (900 W peak)
• Frequency response: 45 Hz – 20 kHz
• Maximum SPL: 126 dB
• Dual limiter circuit for enhanced protection
• Two EQ presets for monitor or front-of-house (FOH) use
• Low-profile, lightweight plywood cabinet with black ultra-durable polyurethane paint
• Reinforced metal grille with dust protection
• Recessed connection panel for added protection
• Two recessed handles for easy transport
• Pole socket for versatile mounting options

Specifications

System Type	2-way coaxial vented stage monitor
Low Frequency Device	15" woofer with 3" voice coil
High Frequency Device	1" horn-loaded compression driver with 1.35" voice coil
Angular Coverage	60°
Frequency Response	45 Hz – 20 kHz
Maximum SPL at 1m (peak)	126 dB
Amplifier Continuous Power	HF: 50 W Class AB; LF: 400 W Class D with SMPS
Input Impedance	30 kΩ balanced; 15 kΩ unbalanced
Input Sensitivity	0 dBu
Controls	Level, Preset Selector (Monitor, FOH), Ground Lift
Connectors	Input: Combo (XLR-F/Jack); Link: XLR-M
Power Supply	230 VAC or 120 VAC – 50/60 Hz
Maximum Consumption	575 W
Rated Consumption*	300 W
Construction	Plywood with black anti-scratch polyurethane paint
Pole Adapter	1 x side
Handles	2 x sides
