Roland TD-07KX Electronic Drum Kit
The Next Step in the TD-07 Series, with Larger Snare and Toms plus a Second Crash Cymbal

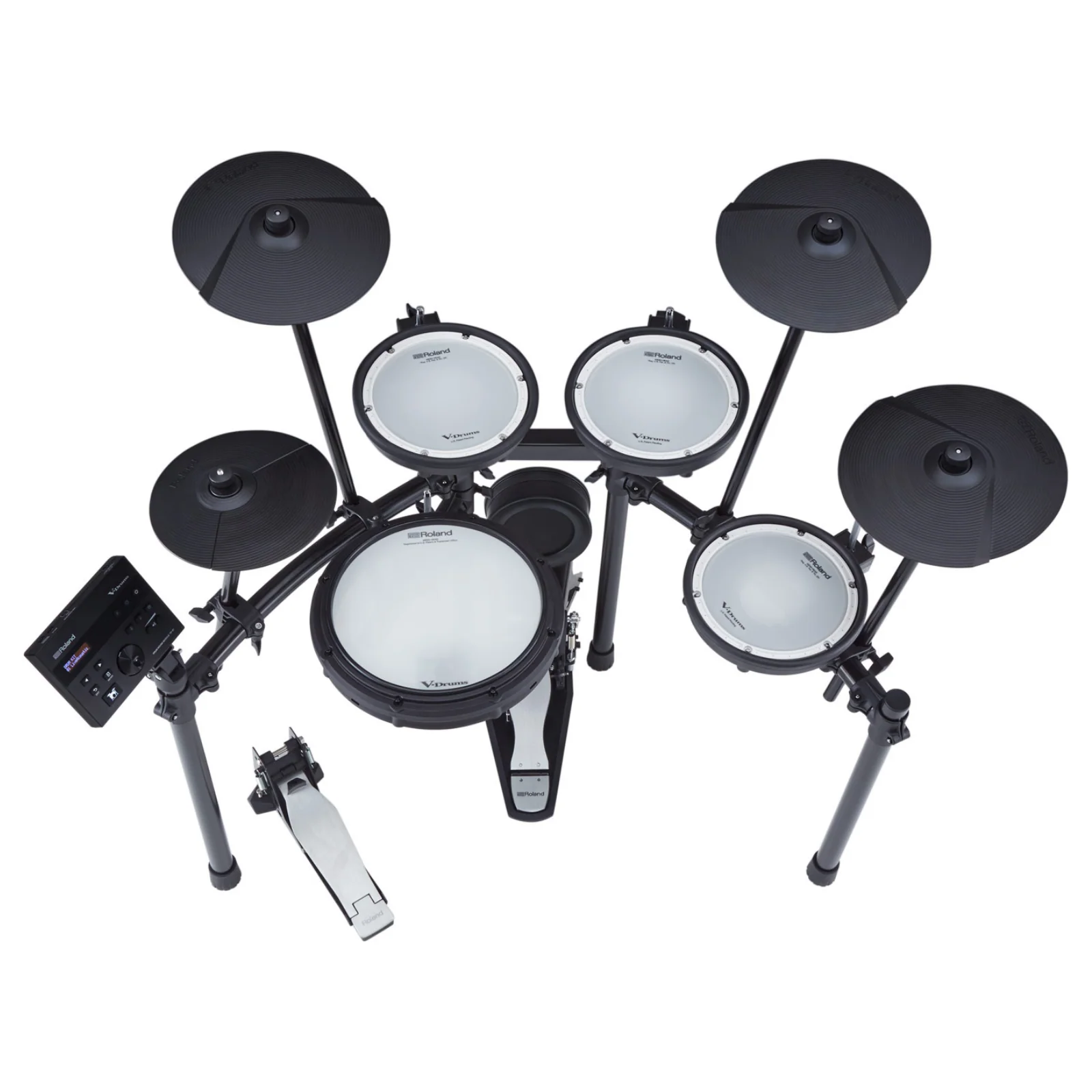

For drumming without limits, the TD-07KX offers larger pads and the highest cymbal count in Roland’s TD-07 V-Drums series—giving great value and extended creative capabilities. The 12-inch PDX-12 snare and 8-inch PDX-8 toms provide the platform to push your drum technique, backed by the unbeatable response of our original ultra-quiet, double-ply mesh heads. Meanwhile, a total of three CY-8 cymbals plus a dedicated kick pad enable new levels of expression.

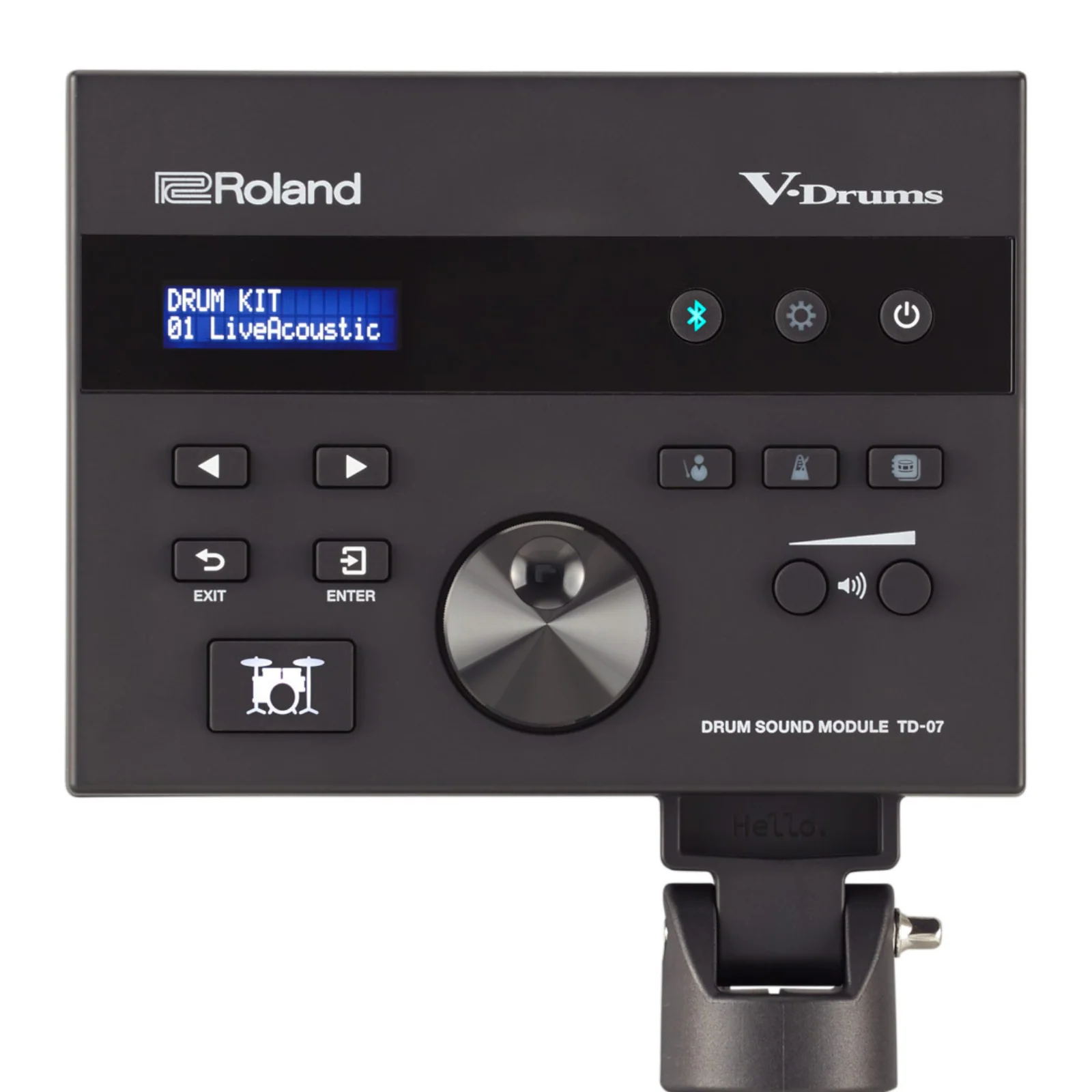

With the foundation of the powerful TD-07 sound module, the TD-07KX goes far beyond traditional drums, offering authentic drum kits across a vast range of styles and genres, plus deep tone editing to customize them. There’s also a Coach function for building skills, Bluetooth® connectivity with smartphones, tablets, and computers for streaming audio to the sound module, and a one-cable USB connection for recording in computer-based music production software.
Technical Specifications
| Specification Category | Specification Details |
|---|---|
| Kit Configuration | Kick: KD-10 Snare: PDX-12 Hi-hat: CY-5 Hi-hat control pedal: FD-9 Tom: PDX-8 x 3 Crash: CY-8 x 2 Ride: CY-8 Drum stand: MDS-COMPACT or MDS-4KVX (sold separately) *1 Kick pedal, hi-hat stand, and drum throne not included. *2 Rim-shot not supported. |
| Drum Kits | 50 (Preset: over 20) |
| Instruments | 143 |
| Effect Types | Pad Equalizer, Overhead Mic Simulator, Room, Multi-Effects: 1 system, 30 types |
| Coach Functions | 5 modes: Time check (easy/hard), Quiet count, Auto up/down, Change-up |
| Metronome | Tempo (20--260), Rhythm type (5 types), Sounds (15 types) |
| Bluetooth | Ver 4.2, A2DP (Audio), GATT (MIDI over Bluetooth Low Energy), Codec: SBC |
| Display | 16 characters x 2 lines LCD (with backlight) |
| Connectors | OUTPUT/PHONES jack, MIX IN jack, USB COMPUTER port, TRIGGER INPUT connector |
| USB Computer | Speed: Hi-speed USB, Driver mode: Generic, Vendor, Protocol: USB MIDI, USB Audio |
| USB Audio | Sampling Rate: 44.1 kHz, 96 kHz, 48 kHz, Record: 2 channels, Playback: 2 channels |
| Power Supply | AC adaptor (DC 12 V), Current draw: 250 mA |
| Accessories | Setup Guide, Owner's Manual, Leaflet "USING THE UNIT SAFELY", AC adaptor, Special connection cable |
| Options (sold separately) | Personal drum monitor: PM series, V-Drums accessory package: DAP-3X, V-Drums mat: TDM series, Noise eater: NE series |
| Size & Weight | Dimensions: 1,300 (W) x 1,100 (D) x 1,200 (H) mm, Weight: 23.3 kg |
The Next Step in the TD-07 Series, with Larger Snare and Toms plus a Second Crash Cymbal
For drumming without limits, the TD-07KX offers larger pads and the highest cymbal count in Roland’s TD-07 V-Drums series—giving great value and extended creative capabilities. The 12-inch PDX-12 snare and 8-inch PDX-8 toms provide the platform to push your drum technique, backed by the unbeatable response of our original ultra-quiet, double-ply mesh heads. Meanwhile, a total of three CY-8 cymbals plus a dedicated kick pad enable new levels of expression.
With the foundation of the powerful TD-07 sound module, the TD-07KX goes far beyond traditional drums, offering authentic drum kits across a vast range of styles and genres, plus deep tone editing to customize them. There’s also a Coach function for building skills, Bluetooth® connectivity with smartphones, tablets, and computers for streaming audio to the sound module, and a one-cable USB connection for recording in computer-based music production software.
Technical Specifications
| Specification Category | Specification Details |
|---|---|
| Kit Configuration | Kick: KD-10 Snare: PDX-12 Hi-hat: CY-5 Hi-hat control pedal: FD-9 Tom: PDX-8 x 3 Crash: CY-8 x 2 Ride: CY-8 Drum stand: MDS-COMPACT or MDS-4KVX (sold separately) *1 Kick pedal, hi-hat stand, and drum throne not included. *2 Rim-shot not supported. |
| Drum Kits | 50 (Preset: over 20) |
| Instruments | 143 |
| Effect Types | Pad Equalizer, Overhead Mic Simulator, Room, Multi-Effects: 1 system, 30 types |
| Coach Functions | 5 modes: Time check (easy/hard), Quiet count, Auto up/down, Change-up |
| Metronome | Tempo (20--260), Rhythm type (5 types), Sounds (15 types) |
| Bluetooth | Ver 4.2, A2DP (Audio), GATT (MIDI over Bluetooth Low Energy), Codec: SBC |
| Display | 16 characters x 2 lines LCD (with backlight) |
| Connectors | OUTPUT/PHONES jack, MIX IN jack, USB COMPUTER port, TRIGGER INPUT connector |
| USB Computer | Speed: Hi-speed USB, Driver mode: Generic, Vendor, Protocol: USB MIDI, USB Audio |
| USB Audio | Sampling Rate: 44.1 kHz, 96 kHz, 48 kHz, Record: 2 channels, Playback: 2 channels |
| Power Supply | AC adaptor (DC 12 V), Current draw: 250 mA |
| Accessories | Setup Guide, Owner's Manual, Leaflet "USING THE UNIT SAFELY", AC adaptor, Special connection cable |
| Options (sold separately) | Personal drum monitor: PM series, V-Drums accessory package: DAP-3X, V-Drums mat: TDM series, Noise eater: NE series |
| Size & Weight | Dimensions: 1,300 (W) x 1,100 (D) x 1,200 (H) mm, Weight: 23.3 kg |
Description
The Next Step in the TD-07 Series, with Larger Snare and Toms plus a Second Crash Cymbal
For drumming without limits, the TD-07KX offers larger pads and the highest cymbal count in Roland’s TD-07 V-Drums series—giving great value and extended creative capabilities. The 12-inch PDX-12 snare and 8-inch PDX-8 toms provide the platform to push your drum technique, backed by the unbeatable response of our original ultra-quiet, double-ply mesh heads. Meanwhile, a total of three CY-8 cymbals plus a dedicated kick pad enable new levels of expression.
With the foundation of the powerful TD-07 sound module, the TD-07KX goes far beyond traditional drums, offering authentic drum kits across a vast range of styles and genres, plus deep tone editing to customize them. There’s also a Coach function for building skills, Bluetooth® connectivity with smartphones, tablets, and computers for streaming audio to the sound module, and a one-cable USB connection for recording in computer-based music production software.
Technical Specifications
| Specification Category | Specification Details |
|---|---|
| Kit Configuration | Kick: KD-10 Snare: PDX-12 Hi-hat: CY-5 Hi-hat control pedal: FD-9 Tom: PDX-8 x 3 Crash: CY-8 x 2 Ride: CY-8 Drum stand: MDS-COMPACT or MDS-4KVX (sold separately) *1 Kick pedal, hi-hat stand, and drum throne not included. *2 Rim-shot not supported. |
| Drum Kits | 50 (Preset: over 20) |
| Instruments | 143 |
| Effect Types | Pad Equalizer, Overhead Mic Simulator, Room, Multi-Effects: 1 system, 30 types |
| Coach Functions | 5 modes: Time check (easy/hard), Quiet count, Auto up/down, Change-up |
| Metronome | Tempo (20--260), Rhythm type (5 types), Sounds (15 types) |
| Bluetooth | Ver 4.2, A2DP (Audio), GATT (MIDI over Bluetooth Low Energy), Codec: SBC |
| Display | 16 characters x 2 lines LCD (with backlight) |
| Connectors | OUTPUT/PHONES jack, MIX IN jack, USB COMPUTER port, TRIGGER INPUT connector |
| USB Computer | Speed: Hi-speed USB, Driver mode: Generic, Vendor, Protocol: USB MIDI, USB Audio |
| USB Audio | Sampling Rate: 44.1 kHz, 96 kHz, 48 kHz, Record: 2 channels, Playback: 2 channels |
| Power Supply | AC adaptor (DC 12 V), Current draw: 250 mA |
| Accessories | Setup Guide, Owner's Manual, Leaflet "USING THE UNIT SAFELY", AC adaptor, Special connection cable |
| Options (sold separately) | Personal drum monitor: PM series, V-Drums accessory package: DAP-3X, V-Drums mat: TDM series, Noise eater: NE series |
| Size & Weight | Dimensions: 1,300 (W) x 1,100 (D) x 1,200 (H) mm, Weight: 23.3 kg |
