Sennheiser XSW 1-835-B Wireless Vocal Set
Sennheiser XSW 1-835-B Wireless Vocal Set
The Sennheiser XSW 1-835-B is part of the XS Wireless 1 series — a reliable, easy-to-use wireless system ideal for live vocals, speeches, and small stage performances. It combines high-quality sound with simplicity, offering automatic frequency management, true diversity reception, and the robust e835 dynamic capsule renowned for clear and powerful vocal reproduction.

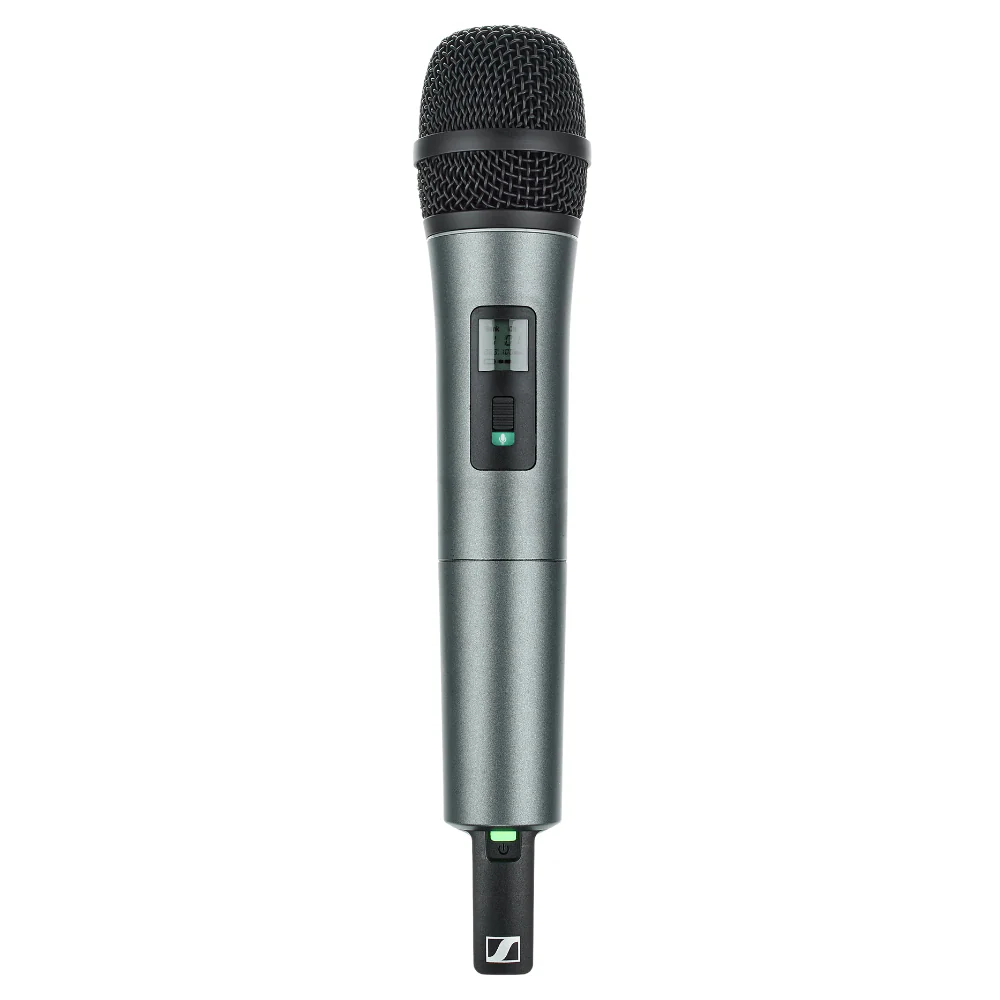

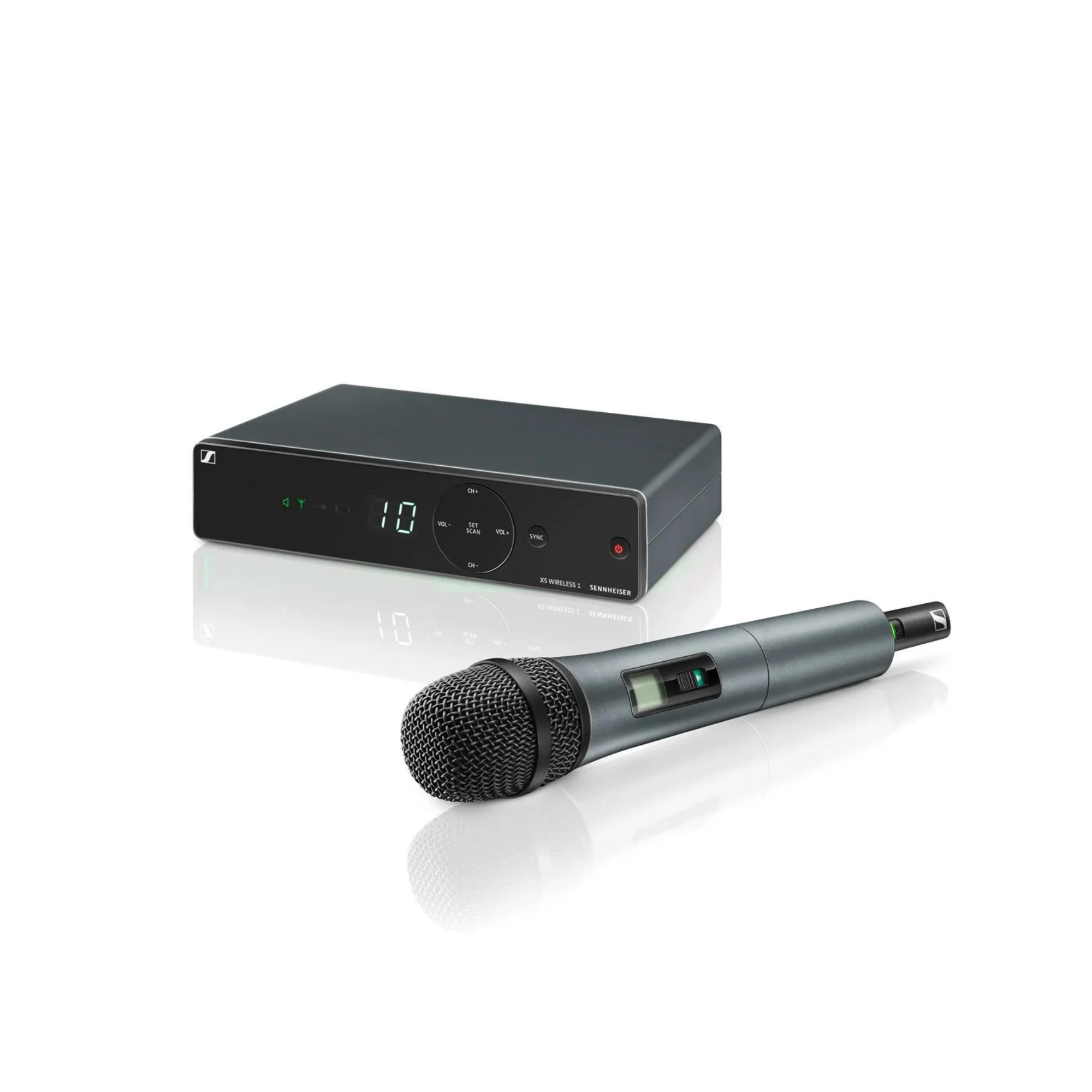

Operating in the B-band (614–638 MHz) UHF range, this system ensures stable transmission and minimal interference in approved frequency regions. The complete set includes a handheld transmitter with the e835 capsule, a compact diversity receiver, power supply, microphone clamp, and AA batteries — everything needed for seamless setup and operation.
Key Features
- All-in-one wireless system for singers, presenters, and performers.
- Dynamic e835 capsule provides clarity, warmth, and feedback resistance.
- Automatic frequency management and synchronization simplify setup.
- UHF B-band operation (614–638 MHz) ensures stable and clear audio transmission.
- Diversity reception technology for improved reliability and reduced signal dropouts.
- Up to 10 hours of operation with standard AA batteries.
Specifications
| Feature | Detail |
|---|---|
| Frequency Range (RF) | 614 – 638 MHz (B-band) |
| Audio Frequency Response | 50 Hz – 16 kHz (–3 dB) |
| Total Harmonic Distortion (THD) | ≤ 0.9% |
| Pickup / Polar Pattern | Cardioid (dynamic e835 capsule) |
| Signal-to-Noise Ratio (Receiver) | ≥ 103 dBA |
| Switching Bandwidth | Up to 24 MHz |
| Transmitter RF Output Power | 10 mW |
| Operating Time | ~10 hours (2 × AA batteries) |
| Receiver Outputs | XLR (balanced) and ¼″ / 6.3 mm (unbalanced line out) |
| Squelch / Noise Gate | Adjustable from 3 dBμV to 28 dBμV (with pilot tone) |
| Line / Mic Level Switch | 20 dB switchable gain |
| Audio Adjustment Range | 45 dB in 5 dB steps |
| Sync / Control | 2.4 GHz OQPSK link used during pairing |
| Operating Temperature | 0 °C to +40 °C |
| Storage Temperature | –20 °C to +70 °C |
| Receiver Dimensions | ~320 × 126.5 × 42 mm |
| Receiver Weight | ~620 g |
| Transmitter Dimensions | Ø 48 × L 180 mm |
| Transmitter Weight | ~245 g |
| Microphone Connector | XLR-3 (balanced) |
| Nominal Impedance | 300 Ω @ 1 kHz |
Why Choose the Sennheiser XSW 1-835-B?
- Professional-grade sound: The renowned e835 capsule delivers clarity and warmth ideal for live vocals.
- Reliable UHF transmission: B-band operation ensures dependable wireless performance.
- Effortless setup: Automatic frequency management and one-touch synchronization simplify use.
- Durable and portable: Lightweight components built for live stage environments.
Performance That Keeps You Connected.
The Sennheiser XSW 1-835-B delivers the trusted Sennheiser sound with effortless wireless operation. Designed for performers and presenters who demand clarity and dependability, it ensures every word and note is heard with confidence and precision.
Sennheiser XSW 1-835-B Wireless Vocal Set
The Sennheiser XSW 1-835-B is part of the XS Wireless 1 series — a reliable, easy-to-use wireless system ideal for live vocals, speeches, and small stage performances. It combines high-quality sound with simplicity, offering automatic frequency management, true diversity reception, and the robust e835 dynamic capsule renowned for clear and powerful vocal reproduction.
Operating in the B-band (614–638 MHz) UHF range, this system ensures stable transmission and minimal interference in approved frequency regions. The complete set includes a handheld transmitter with the e835 capsule, a compact diversity receiver, power supply, microphone clamp, and AA batteries — everything needed for seamless setup and operation.
Key Features
- All-in-one wireless system for singers, presenters, and performers.
- Dynamic e835 capsule provides clarity, warmth, and feedback resistance.
- Automatic frequency management and synchronization simplify setup.
- UHF B-band operation (614–638 MHz) ensures stable and clear audio transmission.
- Diversity reception technology for improved reliability and reduced signal dropouts.
- Up to 10 hours of operation with standard AA batteries.
Specifications
| Feature | Detail |
|---|---|
| Frequency Range (RF) | 614 – 638 MHz (B-band) |
| Audio Frequency Response | 50 Hz – 16 kHz (–3 dB) |
| Total Harmonic Distortion (THD) | ≤ 0.9% |
| Pickup / Polar Pattern | Cardioid (dynamic e835 capsule) |
| Signal-to-Noise Ratio (Receiver) | ≥ 103 dBA |
| Switching Bandwidth | Up to 24 MHz |
| Transmitter RF Output Power | 10 mW |
| Operating Time | ~10 hours (2 × AA batteries) |
| Receiver Outputs | XLR (balanced) and ¼″ / 6.3 mm (unbalanced line out) |
| Squelch / Noise Gate | Adjustable from 3 dBμV to 28 dBμV (with pilot tone) |
| Line / Mic Level Switch | 20 dB switchable gain |
| Audio Adjustment Range | 45 dB in 5 dB steps |
| Sync / Control | 2.4 GHz OQPSK link used during pairing |
| Operating Temperature | 0 °C to +40 °C |
| Storage Temperature | –20 °C to +70 °C |
| Receiver Dimensions | ~320 × 126.5 × 42 mm |
| Receiver Weight | ~620 g |
| Transmitter Dimensions | Ø 48 × L 180 mm |
| Transmitter Weight | ~245 g |
| Microphone Connector | XLR-3 (balanced) |
| Nominal Impedance | 300 Ω @ 1 kHz |
Why Choose the Sennheiser XSW 1-835-B?
- Professional-grade sound: The renowned e835 capsule delivers clarity and warmth ideal for live vocals.
- Reliable UHF transmission: B-band operation ensures dependable wireless performance.
- Effortless setup: Automatic frequency management and one-touch synchronization simplify use.
- Durable and portable: Lightweight components built for live stage environments.
Performance That Keeps You Connected.
The Sennheiser XSW 1-835-B delivers the trusted Sennheiser sound with effortless wireless operation. Designed for performers and presenters who demand clarity and dependability, it ensures every word and note is heard with confidence and precision.
Original: $340.10
-65%$340.10
$119.03Description
Sennheiser XSW 1-835-B Wireless Vocal Set
The Sennheiser XSW 1-835-B is part of the XS Wireless 1 series — a reliable, easy-to-use wireless system ideal for live vocals, speeches, and small stage performances. It combines high-quality sound with simplicity, offering automatic frequency management, true diversity reception, and the robust e835 dynamic capsule renowned for clear and powerful vocal reproduction.
Operating in the B-band (614–638 MHz) UHF range, this system ensures stable transmission and minimal interference in approved frequency regions. The complete set includes a handheld transmitter with the e835 capsule, a compact diversity receiver, power supply, microphone clamp, and AA batteries — everything needed for seamless setup and operation.
Key Features
- All-in-one wireless system for singers, presenters, and performers.
- Dynamic e835 capsule provides clarity, warmth, and feedback resistance.
- Automatic frequency management and synchronization simplify setup.
- UHF B-band operation (614–638 MHz) ensures stable and clear audio transmission.
- Diversity reception technology for improved reliability and reduced signal dropouts.
- Up to 10 hours of operation with standard AA batteries.
Specifications
| Feature | Detail |
|---|---|
| Frequency Range (RF) | 614 – 638 MHz (B-band) |
| Audio Frequency Response | 50 Hz – 16 kHz (–3 dB) |
| Total Harmonic Distortion (THD) | ≤ 0.9% |
| Pickup / Polar Pattern | Cardioid (dynamic e835 capsule) |
| Signal-to-Noise Ratio (Receiver) | ≥ 103 dBA |
| Switching Bandwidth | Up to 24 MHz |
| Transmitter RF Output Power | 10 mW |
| Operating Time | ~10 hours (2 × AA batteries) |
| Receiver Outputs | XLR (balanced) and ¼″ / 6.3 mm (unbalanced line out) |
| Squelch / Noise Gate | Adjustable from 3 dBμV to 28 dBμV (with pilot tone) |
| Line / Mic Level Switch | 20 dB switchable gain |
| Audio Adjustment Range | 45 dB in 5 dB steps |
| Sync / Control | 2.4 GHz OQPSK link used during pairing |
| Operating Temperature | 0 °C to +40 °C |
| Storage Temperature | –20 °C to +70 °C |
| Receiver Dimensions | ~320 × 126.5 × 42 mm |
| Receiver Weight | ~620 g |
| Transmitter Dimensions | Ø 48 × L 180 mm |
| Transmitter Weight | ~245 g |
| Microphone Connector | XLR-3 (balanced) |
| Nominal Impedance | 300 Ω @ 1 kHz |
Why Choose the Sennheiser XSW 1-835-B?
- Professional-grade sound: The renowned e835 capsule delivers clarity and warmth ideal for live vocals.
- Reliable UHF transmission: B-band operation ensures dependable wireless performance.
- Effortless setup: Automatic frequency management and one-touch synchronization simplify use.
- Durable and portable: Lightweight components built for live stage environments.
Performance That Keeps You Connected.
The Sennheiser XSW 1-835-B delivers the trusted Sennheiser sound with effortless wireless operation. Designed for performers and presenters who demand clarity and dependability, it ensures every word and note is heard with confidence and precision.
